Mavic Pro Unboxing – DJI’s compact drone

The new DJI Mavic Pro has revolutionized the drone industry. Up until now, the Phantom-class drone was as portable as you could get for good 4K Video and 12MP stills. The Mavic Pro changes this. Today we get to Unbox the Mavic Pro.

img_0769Mavic Pro retail box

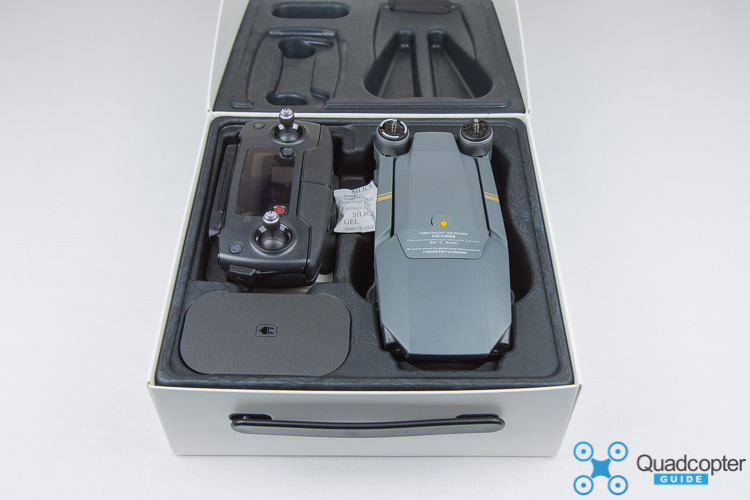

img_0779First peak of the Mavic Pro

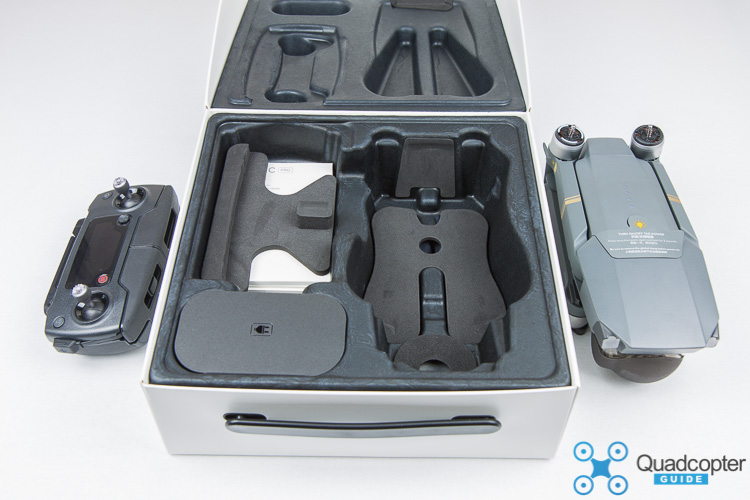

img_0780Manuals and four (two for the front arms and two spares) propellers under foam packaging

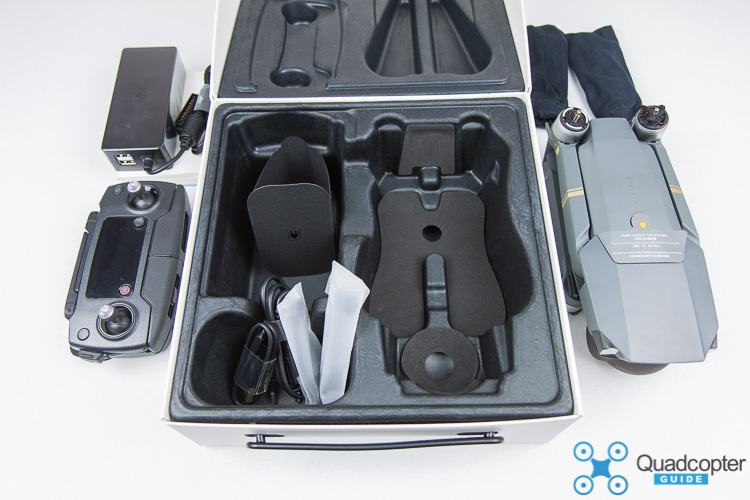

img_0786Cables and propeller bags removed from the retail box

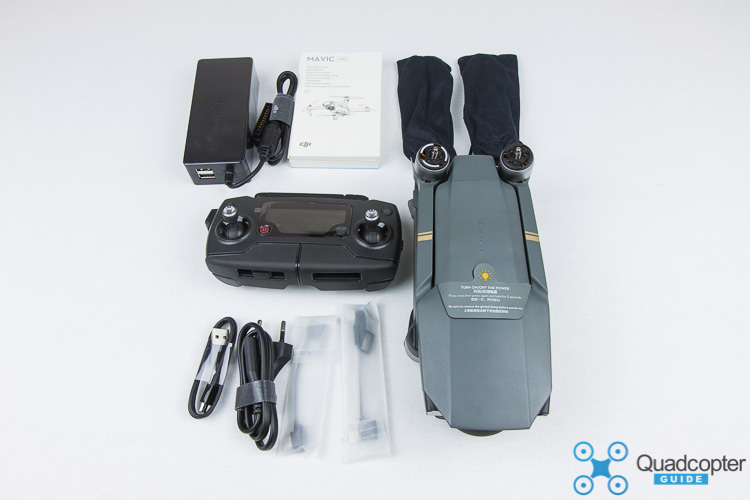

img_0787Everything laid out

qcgmavic300x250

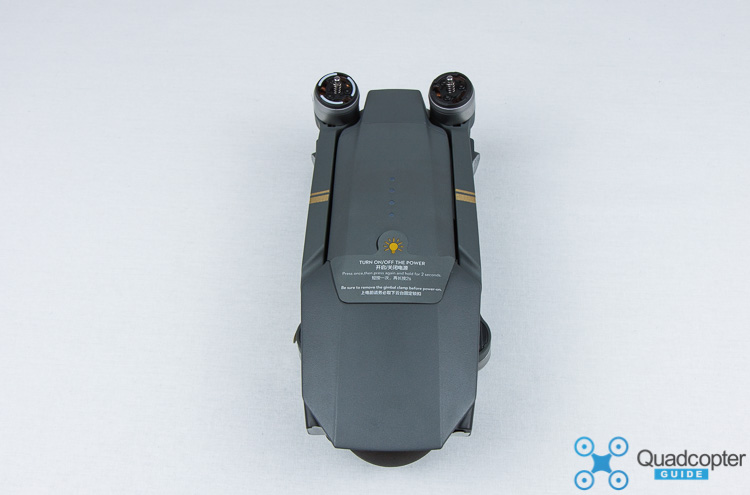

img_0790Top of the Mavic Pro drone without the front propellers installed

img_0795Bottom of the Mavic Pro with gimbal cover and silicone protector still on.

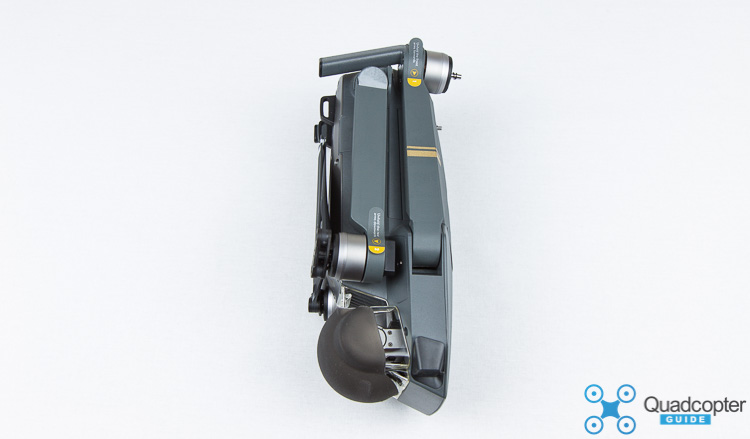

img_0796Right side of Mavic Pro

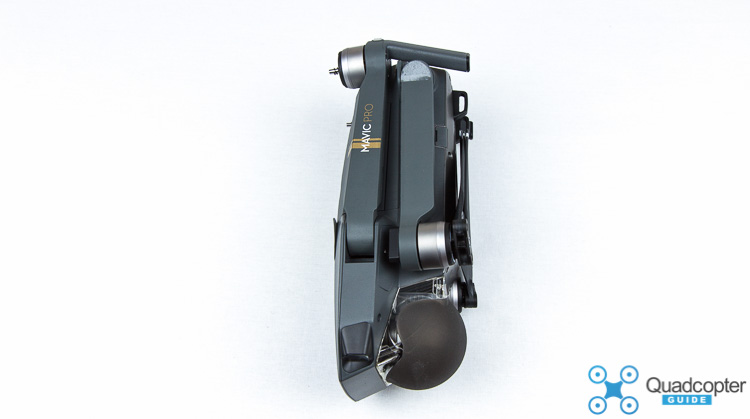

img_0797Left side of Mavic

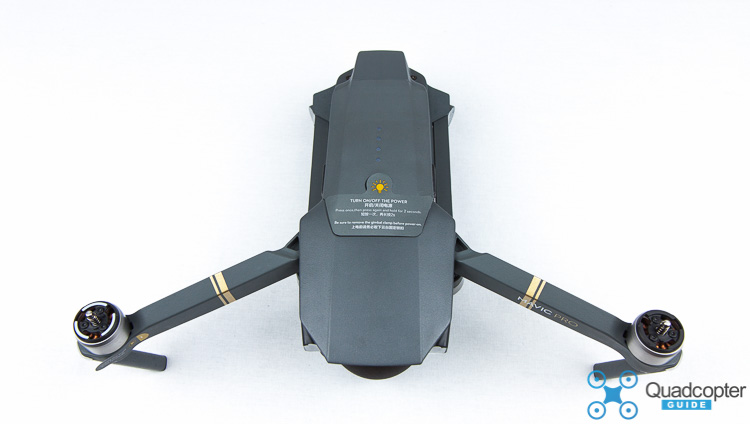

img_0799Front arms extended into the flying position

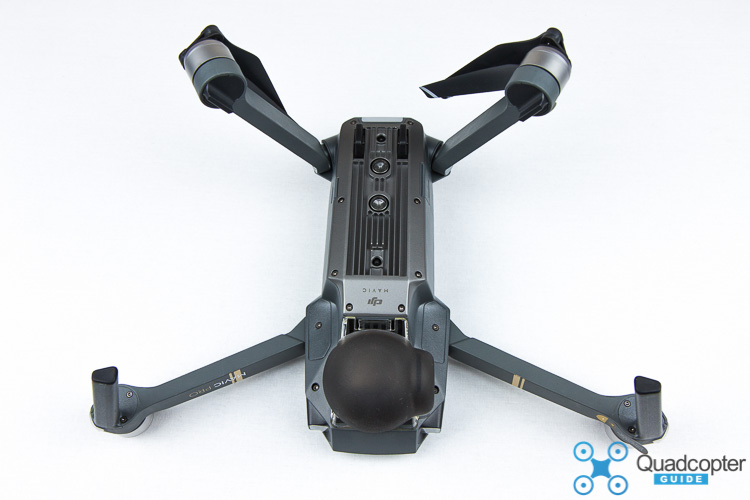

img_0801Rear arms in process of being folded out. This is about half-way unfolded to the flying configuration.

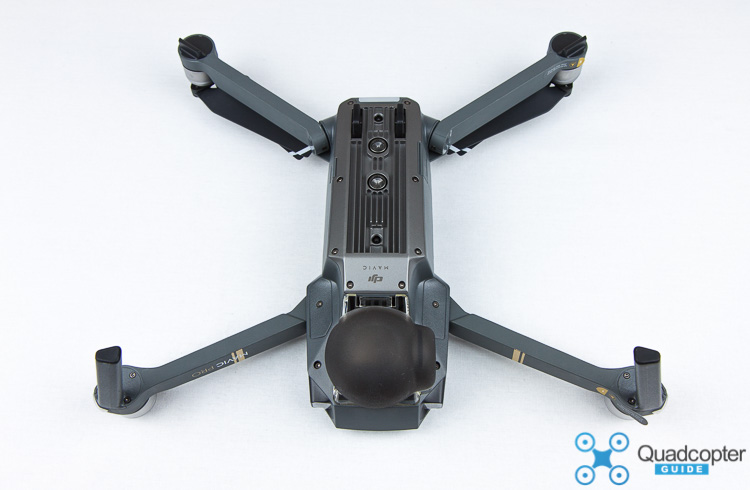

img_0802Bottom of Mavic in unfolded flying configuration

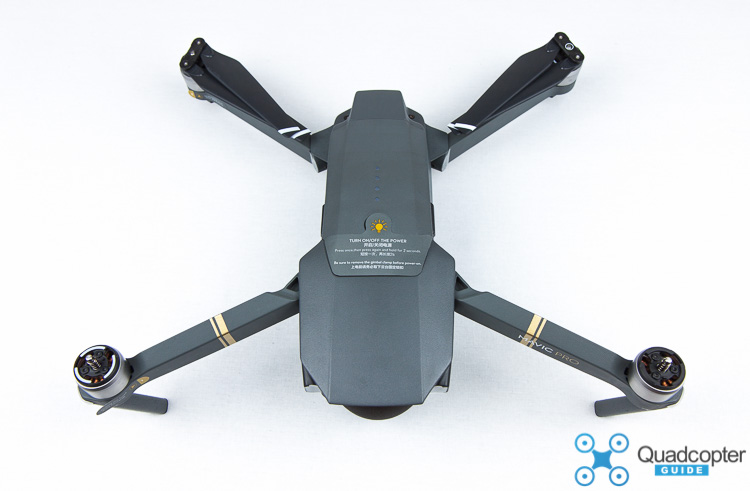

img_0803Top of Mavic in unfolded configuration.

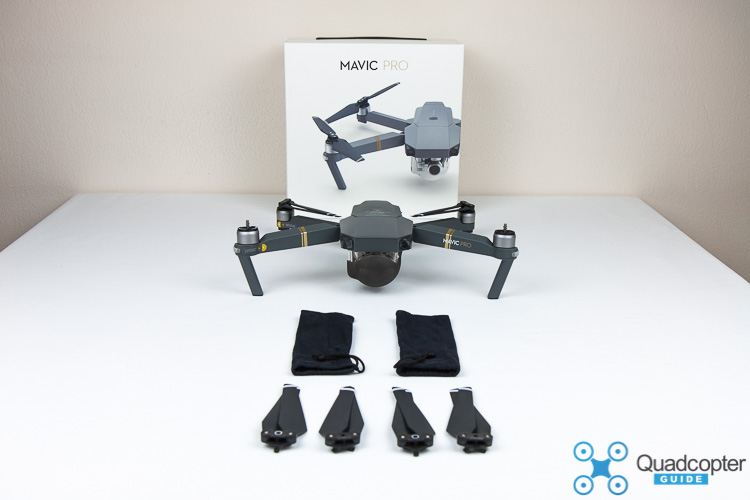

img_0807Mavic with front propellers and spare propellers laid out

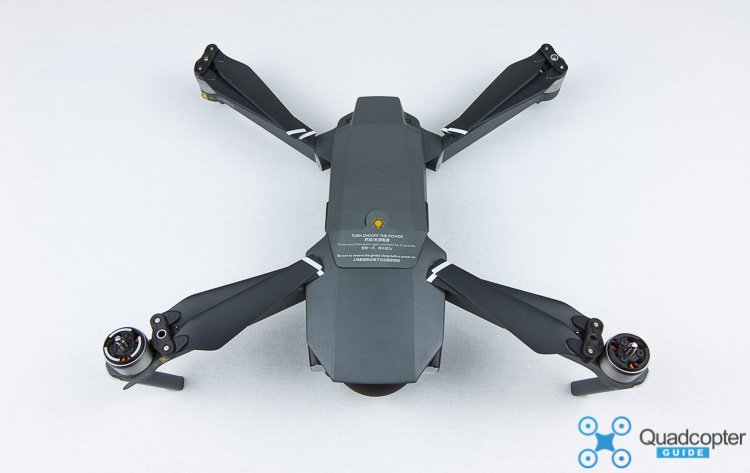

img_0813 Front propellers matched up with color coded motor hub. Note the motor on the left side of the picture has 3 white stripes on the edge of the motors’ cans. The propeller with the white circle in the middle of the propeller hub goes on the motor with the white markings. The opposite motor seen on the right side of the photo, without stripes receives a matching propeller without any markings.

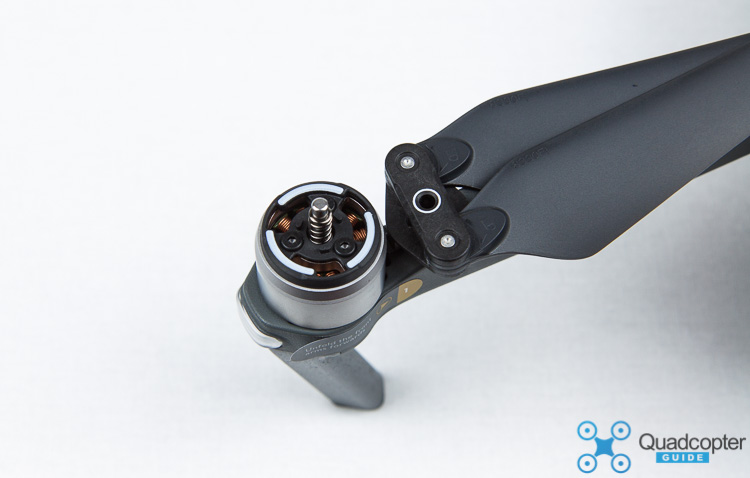

img_0814Striped motor with matching propeller

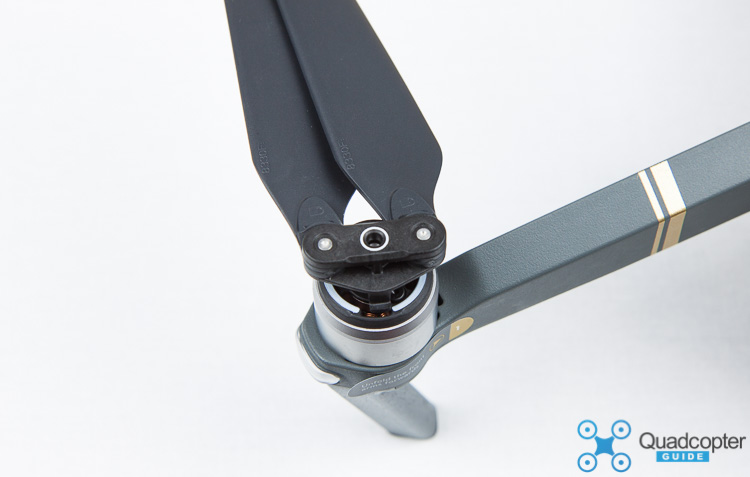

img_0816Propeller placed on top of the spring loaded motor shaft.

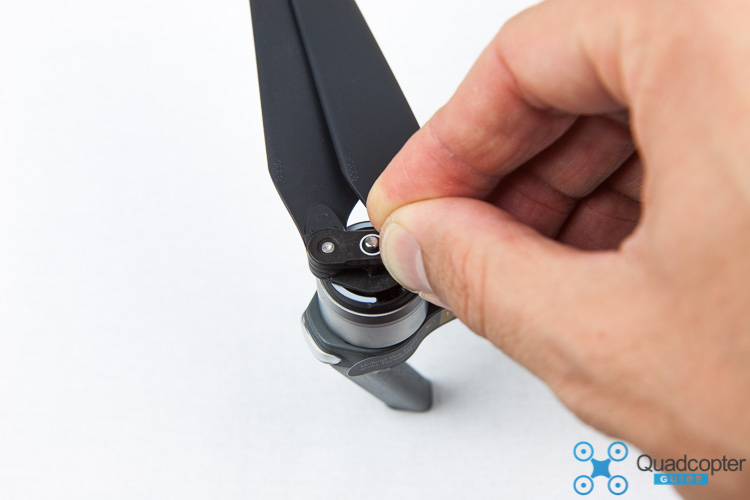

img_0817You install the propellers by pushing down with a little force to compress the spring, then rotate until the propeller doesn’t spin further onto the motor. Releasing the propeller will lock it in place. If the propeller pops back up, twist the propeller into the other direction after pushing down on it.

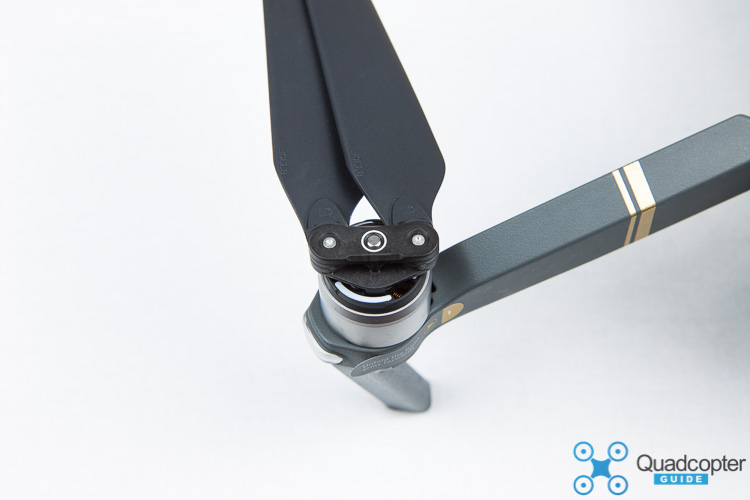

img_0818Installed propeller

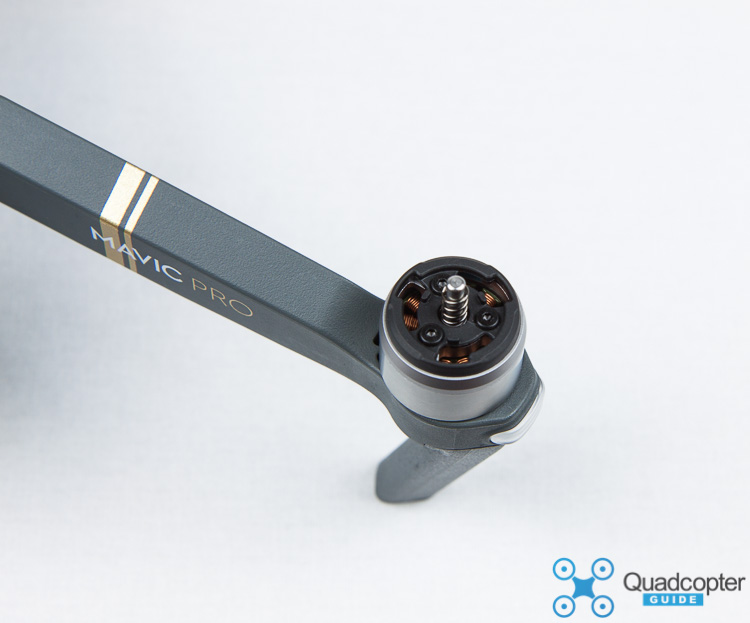

img_0819Other motor without white markings

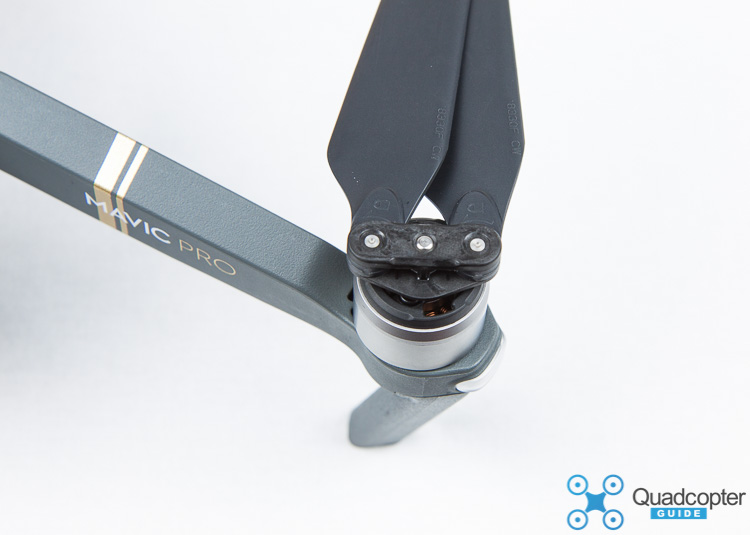

img_0820Installed propeller

img_0822Mavic Pro with all four propellers installed

img_0824Mavic with propellers unfolded. It literally can not get larger than this 🙂

qcg_768x90

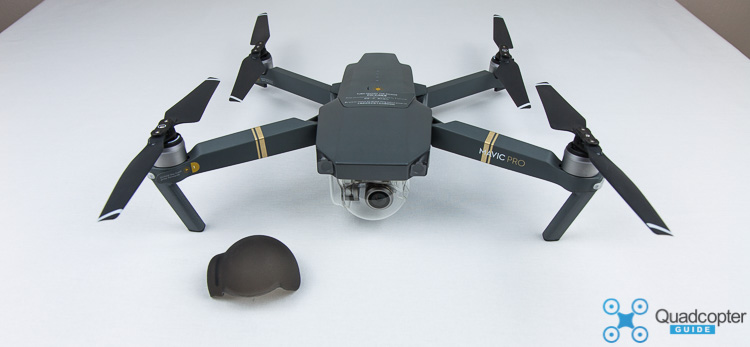

img_0826Gimbal cover without the silicone cap

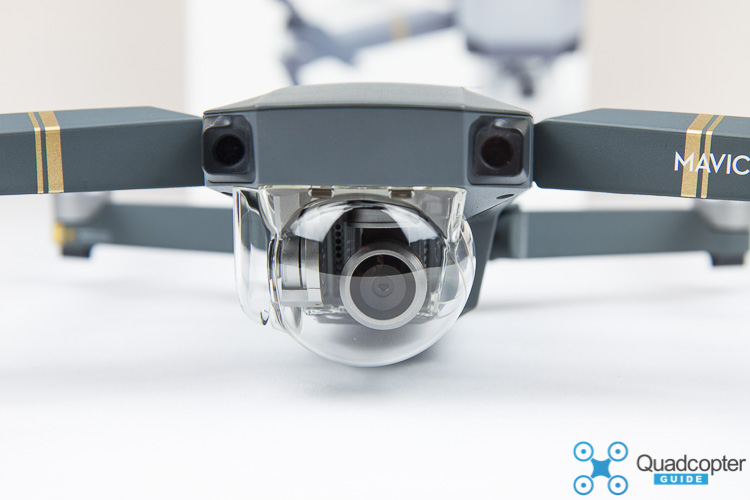

img_0827Close up of the gimbal, camera and gimbal cover. You can also see the front obstacle avoidance sensors.

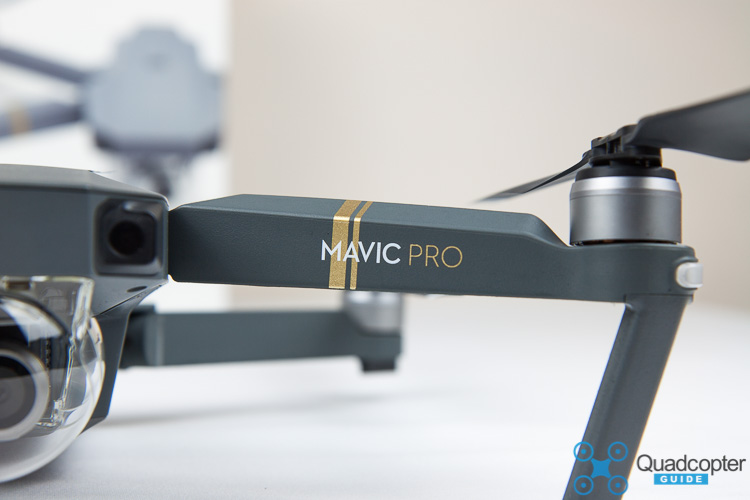

img_0828Left front arm of the Mavic with the Arm LED visible on the tip of the arm.

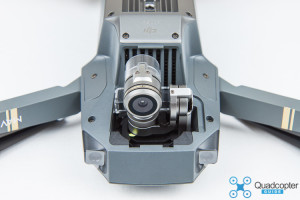

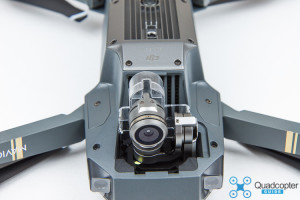

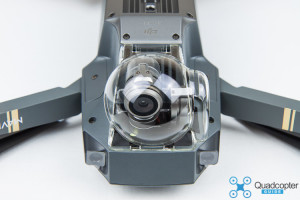

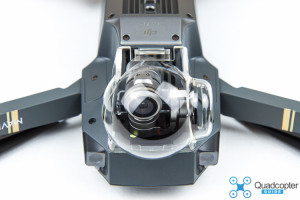

img_0832img_0833img_0834img_0835

Removal of the gimbal clamp and gimbal protector

img_0836

Gimbal protector being removed

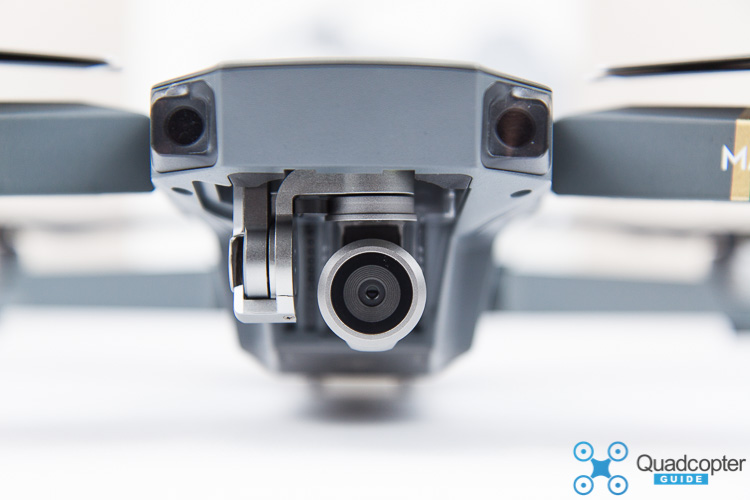

img_0838Gimbal without gimbal cover.

qcgmavic300x250

img_0844Mavic Pro GL200A remote control

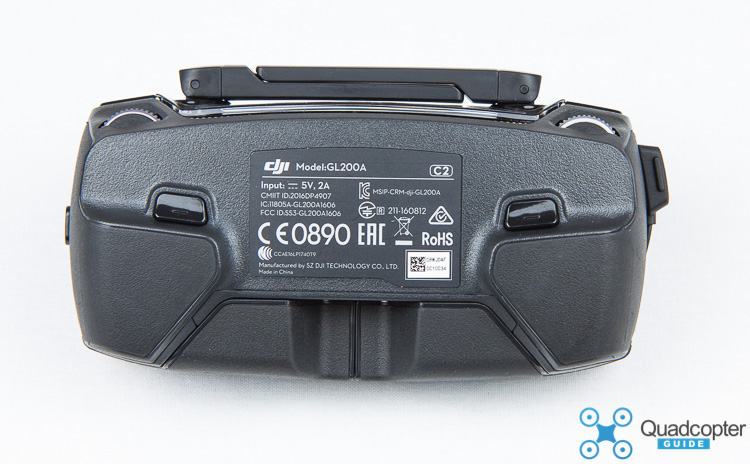

img_0846Rear view of the Mavic transmitter/remote control

img_0847remote control unfolded to accept smartphone or tablet.

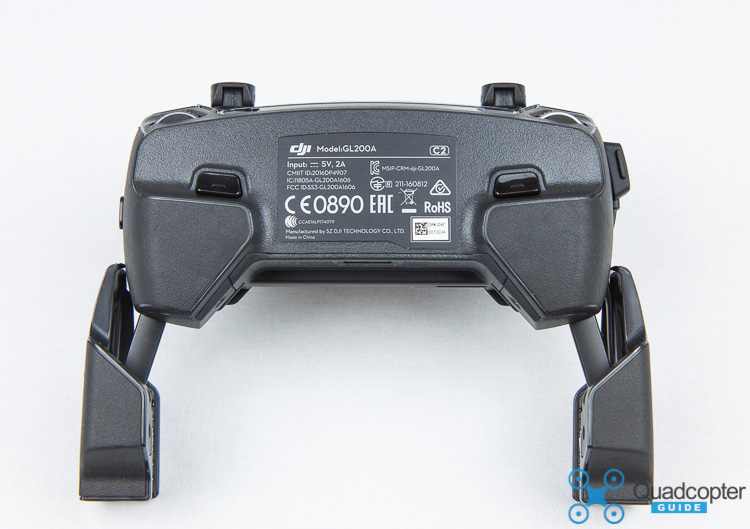

img_0848Rear of the remote control

img_0849The lightning cable is installed by default for iOS devices, but a microUSB and USB-C cable are also included with the Mavic for Android devices.

img_0850The bottom of the remote control. Note the Fullsize USB port for attaching larger Tablets with normal USB cables.

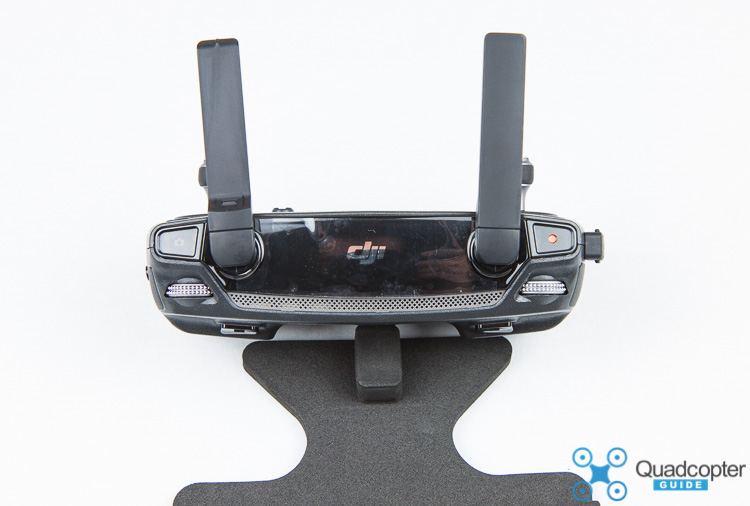

img_0851Front of the remote control

img_0853Left side of the remote control featuring the included cable.

img_0854Right side of the remote control with the Sport Mode switch.

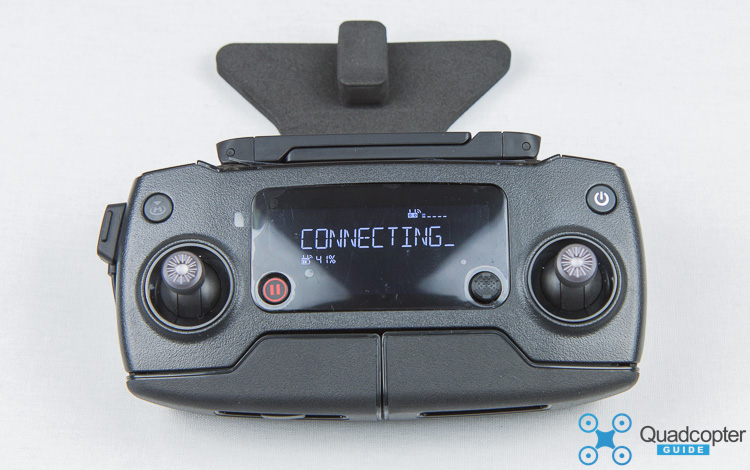

img_0856Powering on the remote shows a shipping charge of 41%.

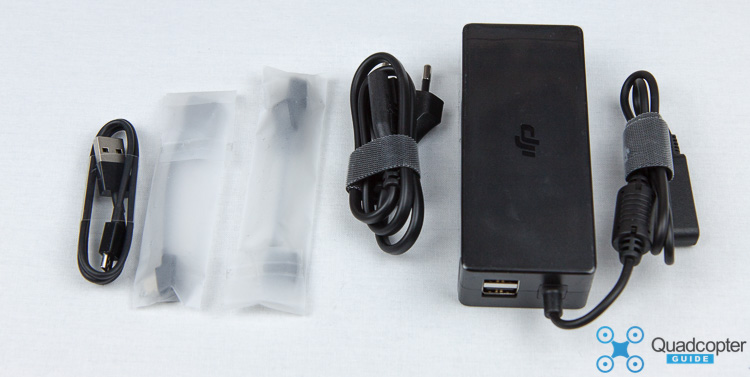

img_0861microUSB charging cable, spare remote control cables. Also the Mavic Pro charger, note the USB ports allowing for simultaneous remote control and smartphone charging.

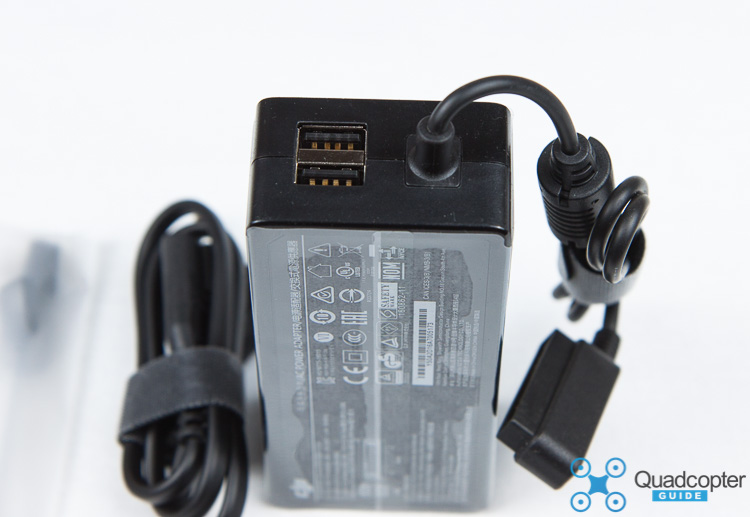

img_0862USB ports

img_086510 pin Charger cable

img_0867Manuals and DJI Care Refresh card.

Stay tuned for the Unboxing of the Fly More Package Accessories.
