DJI Inspire 1 quadcopter officially released

DJI at todays event in San Francisco released the Inspire 1 quadcopter. It’s new prosumer drone builds on the features we have come to love on the Phantom 2 line and expands them even more.

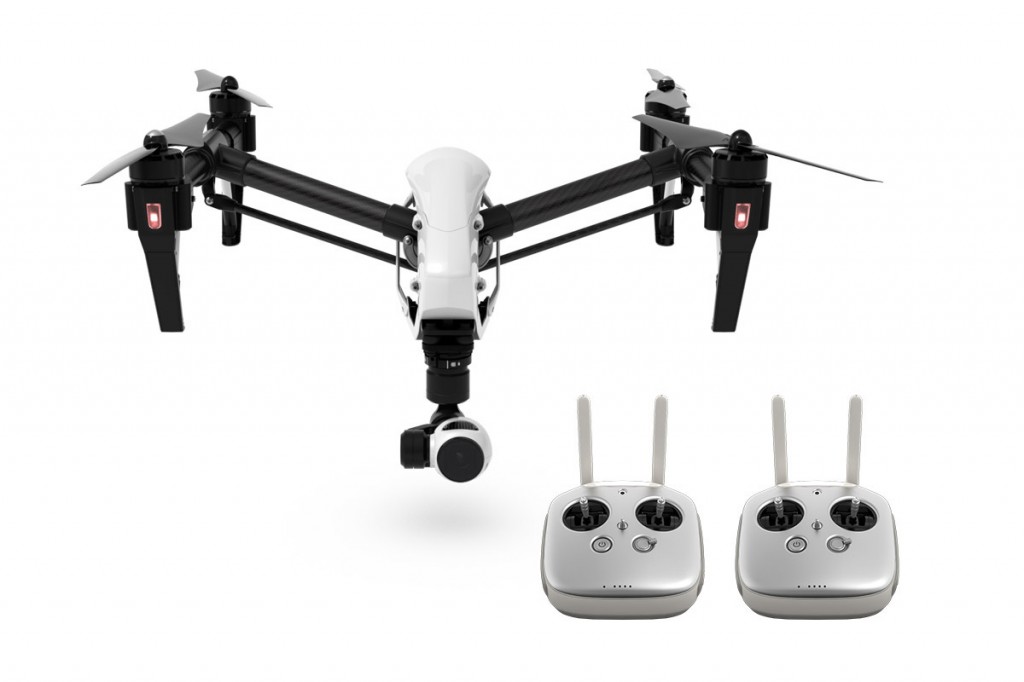

Inspire1w2remotes

Features:

  • Strong carbon fiber arms lift out of sight, transforming the way you shoot. Get a full, unrestricted 360⁰ view of the world below and create images like never before. The body’s aerodynamic design cuts through the sky and further enhances your control over the aircraft. This ensures long flight times and a long operational life.
  • Video: 4K @ 24-30 fps, or 1080p @ 24-60fps,
    • Photos: 12 Megapixels
    • Lens: 9 elements in 9 groups including an aspherical element
    • 1/2.3 inch CMOS sensor
    • 94⁰ wide-angle FOV
    • 3-axis, 360⁰ rotating gimbal
  • Shoot up to 4K video and capture 12 megapixel photos with the Inspire 1 camera. The lens consists of 9 elements in 9 groups including an aspherical element producing extreme clarity, while Adobe DNG RAW support gives you the power to make every shot a masterpiece.
  • Inspire 1’s gimbal and camera system can be removed from the aircraft for safe transport and future upgrades.
  • Take complete control of your camera and flight system with a comprehensive mobile app. Everything
    from manual camera controls to flight telemetry and even auto takeoff and landing are just a tap away,
    with more functions and updates coming soon.
  • Fly with a friend and share your vision. Achieve shots that never would have been possible alone by using
    two remote controllers. One person flies, while the other controls the camera. Each user can have their own screen to see exactly what is being shot in real-time. By working in tandem, you’re capturing shots that are more complex and artistic than ever before.
  • A real-time feed from your Inspire 1’s camera is displayed in 720p HD on your mobile device giving you a perfect view of what the camera sees to frame your shots.
  • Flying indoors is easier than ever with Optical Flow technology that provides accurate position
    holding even when GPS is unavailable. The sensors determine your Inspire 1’s location and altitude
    and lower the legs automatically when landing.
  • A fully integrated intelligent battery powers your Inspire 1 and virtually manages itself.

Get your DJI Inspire 1!

Additional features:

  • Manual Mode
    • Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want.
  • Live Map and Radar
    • See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed and shows your most recent flight path.
  • Dynamic Home Point
    • When GPS signal is available on the remote, the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function.
  • Auto Take-Off and Landing
    • Takeoff and landing is easier than ever before, with both functions just a tap away. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land.
  • Flight Telemetry
    • All of the information you need to fly safely is just a glance away. Altitude, flight speed, distance, and more are right at your fingertips.
  • Remote Control Customization
    • Put yourself in charge by tailoring the Inspire 1’s controls to your personal needs. This way, your Inspire 1 moves and responds in ways you’re most comfortable with.

Specs:

Aircraft

Model
T600
Weight (Battery Included)
2935g
Hovering Accuracy (GPS Mode)
Vertical: 0.5m
Horizontal: 2.5m
Max Angular Velocity
Pitch: 300°/s
Yaw: 150°/s
Max Tilt Angle
35°
Max Ascent Speed
5m/s
Max Descent Speed
4m/s
Max Speed
22m/s (ATTI mode, no wind)
Max Flight Altitude
4500m
Max Wind Speed Resistance
10m/s
Max Flight Time
Approximately 18 minutes
Motor Model
DJI 3510
Propeller Model
DJI 1345
Indoor Hovering
Enabled by default
Operating Temperature Range
-10 to 40°C
Diagonal Distance
559 to 581mm
Dimensions
438x451x301mm

Gimbal

Model
ZENMUSE X3
Output Power (With Camera)
Static: 9W
In Motion: 11W
Operating Current
Station: 750mA
Motion: 900mA
Angular Vibration Range
±0.03°
Mounting
Detachable
Controllable Range
Pitch: -90° to +30°
Pan: ±320°
Mechanical Range
Pitch: -125° to +45°
Pan: ±330°
Max Controllable Speed
Pitch: 120°/s
Pan: 180°/s

Camera

Name
X3
Model
FC350
Resolution
12.0MP
FOV (Field Of View)
94°
CMOS
Sony EXMOR 1/2.3”
Lens
f/2.8 (20mm equivalent)
9 Elements in 9 groups
Aspherical lens element
Anti-distortion filter
UV filter
Still Photography Modes
Single shoot
Burst shooting (BURST: 3/5/7 frames,AEB: 3 or 5 bracketed frames at 0.7EV Bias)
Time lapse
HD Video Recording Modes
UHD (4K):4096x2160p24/25,3840x2160p24/25/30
FHD:1920x1080p24/25/30/48/50/60
HD: 1280x720p24/25/30/48/50/60
Max Bitrate Of Video Storage
60Mbps
Supported File Formats
FAT32/exFAT
Photo: JPEG,DNG
Video: MP4/MOV (MPEG-4 AVC/H.264)
Supported SD Card Types
SD/SDHC/SDXC Micro SD
Max capacity: 64GB. Speed: Class 10 or higher
Operating Temperature Range
0°C to 40°C

Remote Controller

Name
C1
Operating Frequency
922.7MHz~927.7MHz (Japan Only)
5.728GHz~5.850 GHz
2.400GHz~2.483GHz
Transmitting Distance (Outdoor And Unobstructed)
2km
EIRP
10dBm@900m,13dBm@5.8G,20dBm@2.4G
Video Output Port
USB, HDMI
Power Supply
Built-in battery
Charging
DJI charger
Dual User Capability
Host-and-Slave connection
Mobile Device Holder
Tablet or Phone
Output Power
9W
Operating Temperature Range
-20 to 40°C
Storage Temperature Range
Less than 3 months -20 to 45°C
More than 3 months 25°C±3°C
Charging Temperature Range
0-40°C
Battery
6000mAh LiPo 2S

Charger

Model
A14-100P1A
Voltage
26.3V
Rated Power
100W

Battery (Standard)

Name
Intelligent Flight Battery
Model
TB47
Capacity
4500mAh
Voltage
22.2V
Battery Type
LiPo 6S High voltage battery
Energy
99.9Wh
Net Weight
570g
Operating Temperature Range
-20 to 40°C
Storage Temperature Range
Less than 3 months -20 to 45°C
More than 3 months 25°C±3°C
Charging Temperature Range
0-40°C
Max Charging Power
180W

Battery (Optional)

Name
Intelligent Flight Battery
Model
TB48
Capacity
5700mAh
Voltage
22.8V
Battery Type
LiPo 6S
Energy
129.96Wh
Net Weight
670g
Operating Temperature Range
-20 to 40°C
Storage Temperature Range
Less than 3 months -20 to 45°C
More than 3 months 25°C±3°C
Charging Temperature Range
0-40°C
Max Charging Power
180W

Vision Positioning

Velocity Range
Below 8m/s (2m above ground)
Altitude Range
5cm-500cm
Operating Environment
Brightly lit (lux >15) patterned surfaces
Operating Range
0-250cm



Here’s a video trailer that was released:

Data and images courtesy of DJI.
